Your Own RTK Network. Total Control.
Deploy your own base stations for centimeter-accurate positioning anywhere.
±1 cm
RTK Precision
1408
Channels
456g
Weight
<2W
Power Draw
4
GNSS Systems
$700
Price
Triple-Band Technology for Maximum Reliability.
The ROCK Base leverages the Unicore UM980 module with 1408 channels to track GPS, GLONASS, Galileo, and BeiDou simultaneously across L1, L2, and L5 bands. This triple-band approach ensures robust positioning even in challenging environments where single-band receivers fail. More satellites, more frequencies, more reliability.
Deploy Anywhere. Connect Everything.
With built-in WiFi and Bluetooth 4.2, the ROCK Base connects to your network in minutes. Power it via USB-C from any source—wall outlet, battery bank, or solar panel—drawing less than 2W. The compact 102 x 89 x 31mm form factor and 456g weight make it perfect for permanent installations or temporary deployments. Set up your own base network without infrastructure limitations.
Seamless Integration with ROCK Ecosystem.

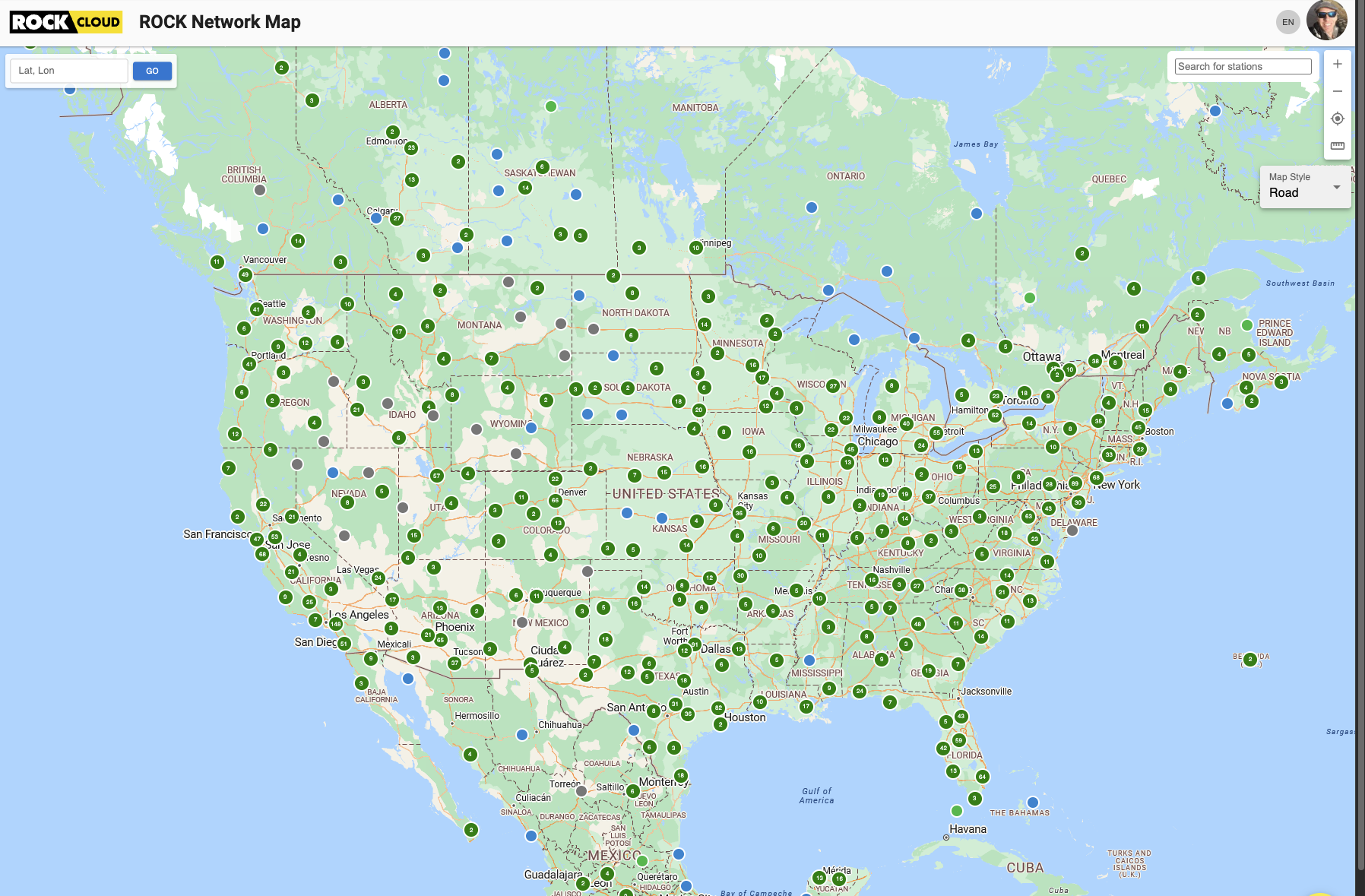

The ROCK Base works natively with all ROCK LiDAR systems and the ROCK Network for real-time corrections. It's also compatible with GeodNET for earning rewards while providing corrections. Use multiple bases to create your own RTK network with shorter baselines for improved accuracy, or connect to our global network when working outside your coverage area.
Technical Specifications
Processing Power
- • Unicore UM980 module
- • 1408 tracking channels
- • 10Hz update rate
- • Cold start: <30s
GNSS Support
- • GPS: L1/L2/L5
- • GLONASS: L1/L2
- • Galileo: E1/E5a/E5b
- • BeiDou: B1/B2/B3
Connectivity
- • WiFi 802.11 b/g/n
- • Bluetooth 4.2
- • USB-C data & power
- • NTRIP caster/client
Durability
- • IP67 weatherproof
- • -40°C to +85°C
- • Shock resistant
- • 24/7 operation
Perfect for Every Application
From survey-grade mapping to precision agriculture, the ROCK Base delivers reliable corrections.
Surveying & Mapping
Establish control points for drone and terrestrial surveys with ±1cm accuracy.
Construction Sites
Deploy permanent bases for machine control and daily progress monitoring.
Remote Operations
Create your own RTK network in areas without cellular or correction services.
Two Options
Option 1
Connect to GEODNET and earn GEODNET tokens based on up-time and quality of observations.
Option 2
Connect to GEODNET and get free personal use of your ROCK Base RTK data over NTRIP for 1 user*.
* Subject to Terms and Conditions. Must maintain 100% uptime of the base station to receive free RTK NTRIP access for your base station. Measured on a month‑to‑month basis.
Frequently Asked Questions
How many ROCK Base stations do I need?
For most operations, one base covers a 20-30km radius effectively. For large project sites or maximum accuracy, deploy multiple bases to ensure all work areas are within 10km of a base station.
Can I use ROCK Base with non-ROCK equipment?
Yes! ROCK Base outputs standard RTCM corrections compatible with any RTK-capable GNSS receiver. Use it with rovers, drones, or machine control systems from any manufacturer.
What's GeodNET and how does it work?
GeodNET is a decentralized RTK network where base station owners earn cryptocurrency rewards for providing corrections. Your ROCK Base can join this network to generate passive income while helping others get accurate positioning.
Do I need an internet connection?
For local operations, no internet is required—connect directly via WiFi or Bluetooth. For remote access or joining networks like GeodNET, you'll need internet connectivity at the base location.
How long does setup take?
Initial setup takes about 15 minutes. Power on, connect to WiFi, set your known position or let it self-survey, and start broadcasting corrections. The intuitive web interface guides you through each step.
Take Control of Your Accuracy
Stop paying for corrections. Start owning your RTK infrastructure.
Only $700
One-time purchase • No subscriptions
